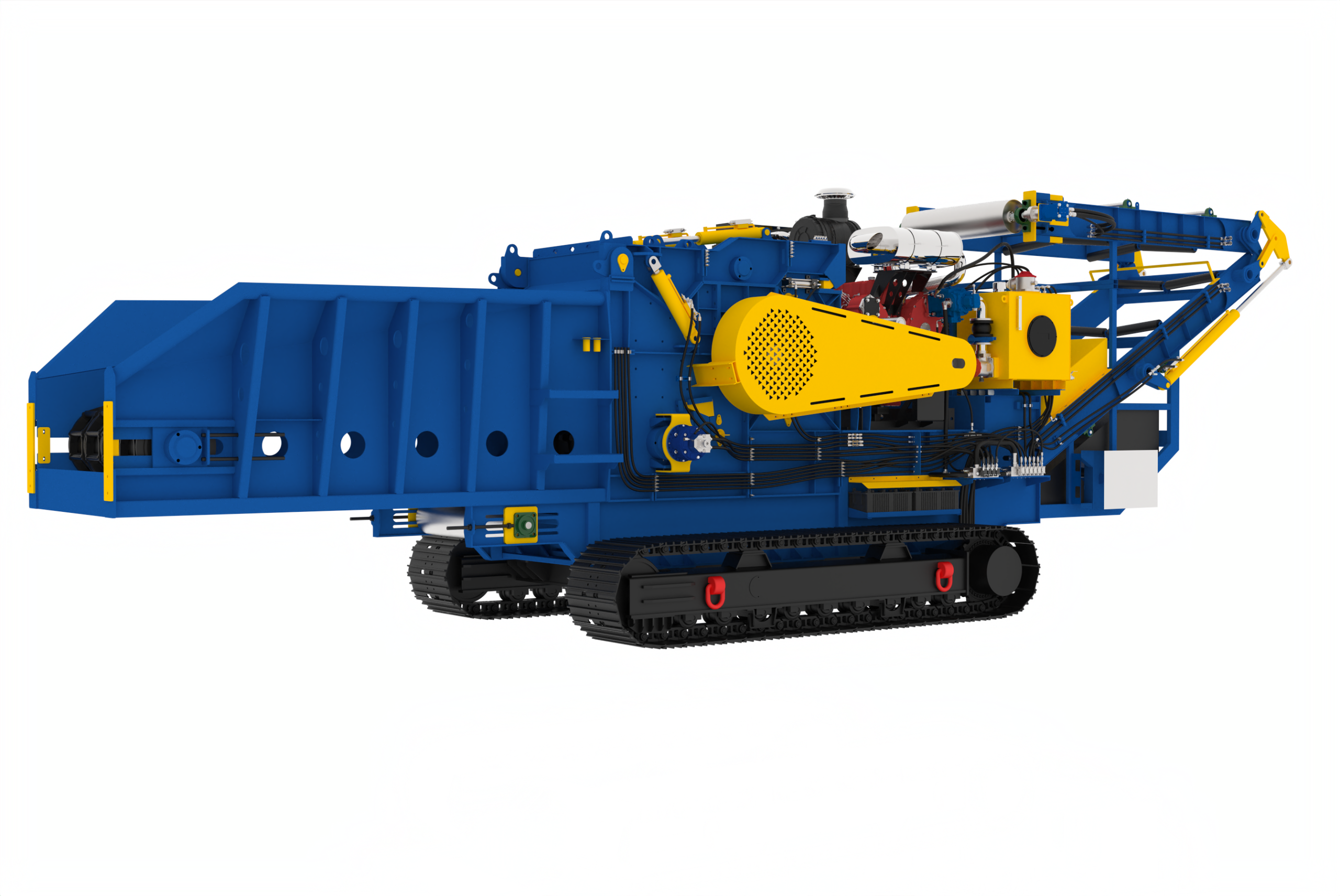

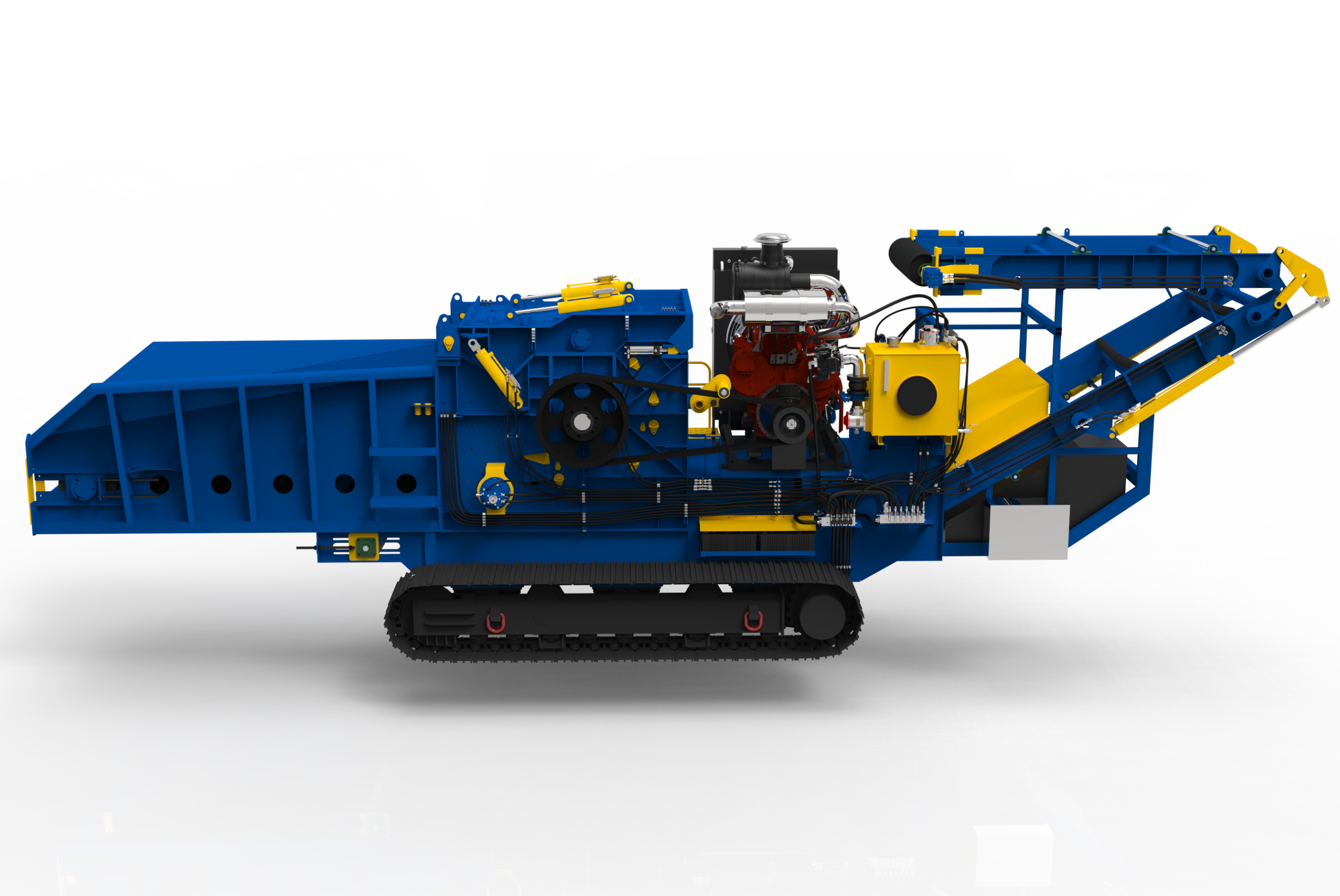

Heavy Duty Wood Chipper

DHG 4000

Transport Length

1106cm

Transport Width

294cm

Transport Height

360cm

Weight

23500KG

Diesel Engine

YCK11480-T300(480HP/353KW)

WhatApp Message

DHG 4000 horizontal grinders are built tough and offered in a variety of configurations to suit large land-clearing, municipal waste and composting operations. The grinders feature a variety of feed table length options, a large range in horsepower, a patented duplex drum and thrown object deflectors (TOD) to help reduce the quantity and distance of thrown material.

Heavy Duty Wood Chipper: Industrial-Grade Power for Demanding Wood Processing

Designed for the toughest forestry, landscaping, and biomass energy applications, our Heavy Duty Wood Chipper delivers unmatched performance, durability, and efficiency. Engineered with a robust steel frame, high-torque diesel engine (50-300 HP options), and precision-cutting blades, this machine effortlessly processes large logs, branches, and wood waste into uniform chips (30-80 mm) at capacities up to 100 tons per hour.

INCREASED ONSITE MOBILITY. The machine’s track drive system allows for jobsite flexibility and reduced material handling requirements to optimize labor.

POWERFUL FEEDING. With a feed opening of 60 in x 30 –in (152.4 cm x 76.2) and robust infeed sidewalls that are double the strength of its predecessor, you can feed whole trees and other large material with less restriction. The machine sidewalls also provide optimal flow of material and minimize operator interaction.

OPTIMAL CUTTING PERFORMANCE. The Series III hardfaced patented duplex drum has increased life with enhancements such as an independently secured wedge system and enhanced drum balancing.

YOUR ACCESS TO MORE. The SHD platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real time data to make smarter decisions, and help maximize productivity and profitability.

COLORING MADE EASY. The optioinal Vermeer coloring system, fully integrated into the grinder,reduces the number of machines required and minimizes handling of material, adding value to your end product. This system optimizes dye and water usage, minimizing your cost per yard.

EFFICIENCY MADE SIMPLE. The optional Vermeer productivity monitoring system provides real-time data on machine performance and allows you to track the volume of material processed by visualizing cubic yards per gallon of fuel.

GENERAL DIMENSIONS Maximum length (transport): 36.1 ft (11.0 m) Maximum length (operation): 52.8 ft (16.1 m) Maximum width: 8.2 ft (2.5 m) Maximum height (transport): 11.5 ft (3.5 m) Weight: 65,000 lb (29,500 kg)	DUPLEX DRUM Drum diameter: 22.5 in (57.2 cm) Tip diameter: 31.3 in (79.6 cm) Number of hammers: 9 Number of tips: 18
ENGINE OPTION ONE Make and model: CAT® C13B T4F/STAGE V Gross horsepower: 536 hp (400 kW) Fuel tank capacity: 200 gal (757 L) Fan: Flexxaire® (variable pitch) Clutch type: Hydraulic-operated Twin Disc	DISCHARGE SYSTEM Length: 20 ft (6.1 m) Width: 48 in (1.2 m) Belt design: 3-ply–330# with V-cleat Load height: 14 ft (4.26 m)
ENGINE OPTION TWO Make and model: CAT C13A TIER 3/STAGE IIIA Gross horsepower: 516 hp (385 kW) Fuel tank capacity: 200 gal (757 L) Fan: Flexxaire® (variable pitch) Clutch type: Hydraulic-operated Twin Disc	TRACK Track type: D4 triple or double grouser Track width: 18.0 in (45.7 cm) Maximum ground speed: 2.8 mph (4.5 km/hr)
HYDRAULIC SYSTEM Tank capacity: 20.0 gal (75.7 L)	CONTROL STATION Radio remote type: LCD Gauges: Panel-mount LCD with keypad inputs Engine information: Yes Machine information: Yes Operational faults: Yes
INFEED SYSTEM Feed table length: 15 ft (4.6 m) Feed table width: 60 in (152.4 cm) Feed table depth: 20 in (50.8 cm) Feed table capacity (without infeed gate): 4.25 yd³ (3.25 m³) Feed table capacity (with infeed gate): 4.72 yd³ (3.6 m³) Loading height: 6.4 ft (1.95 m) Feed conveyor type: Welded slat chain Infeed roller diameter: 28 in (71 cm) Millbox opening: 60.0 in x 30.0 in (152.4 x 76.2 cm) Feed roller down pressure: Adjustable	OPTIONS Screens Tips Magnetic discharge conveyor pulley Extended warranty Preventative maintenance Special paint Vermeer Confidence Plus® asset protection program Damage Defense Screen hoist Infeed end gate
