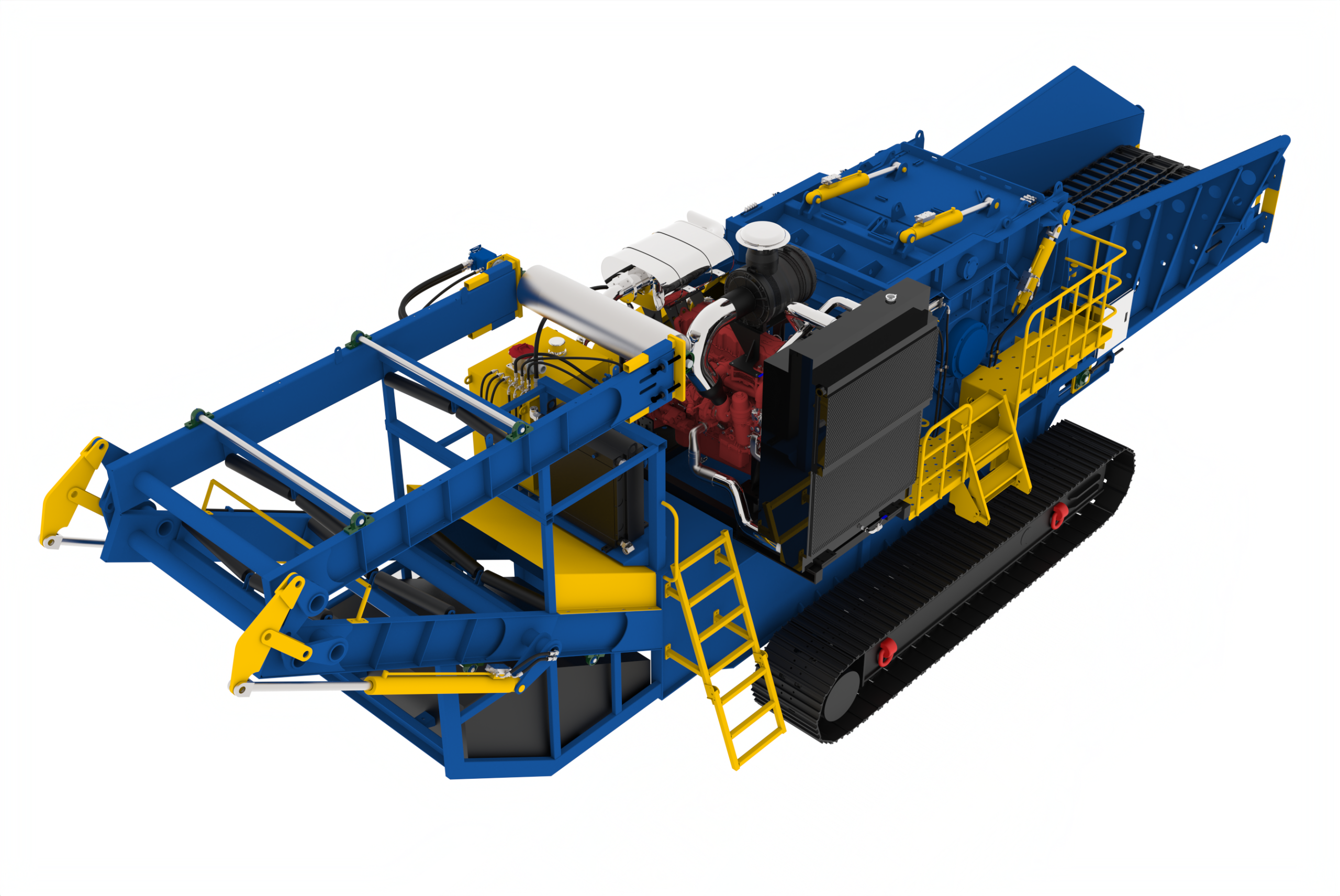

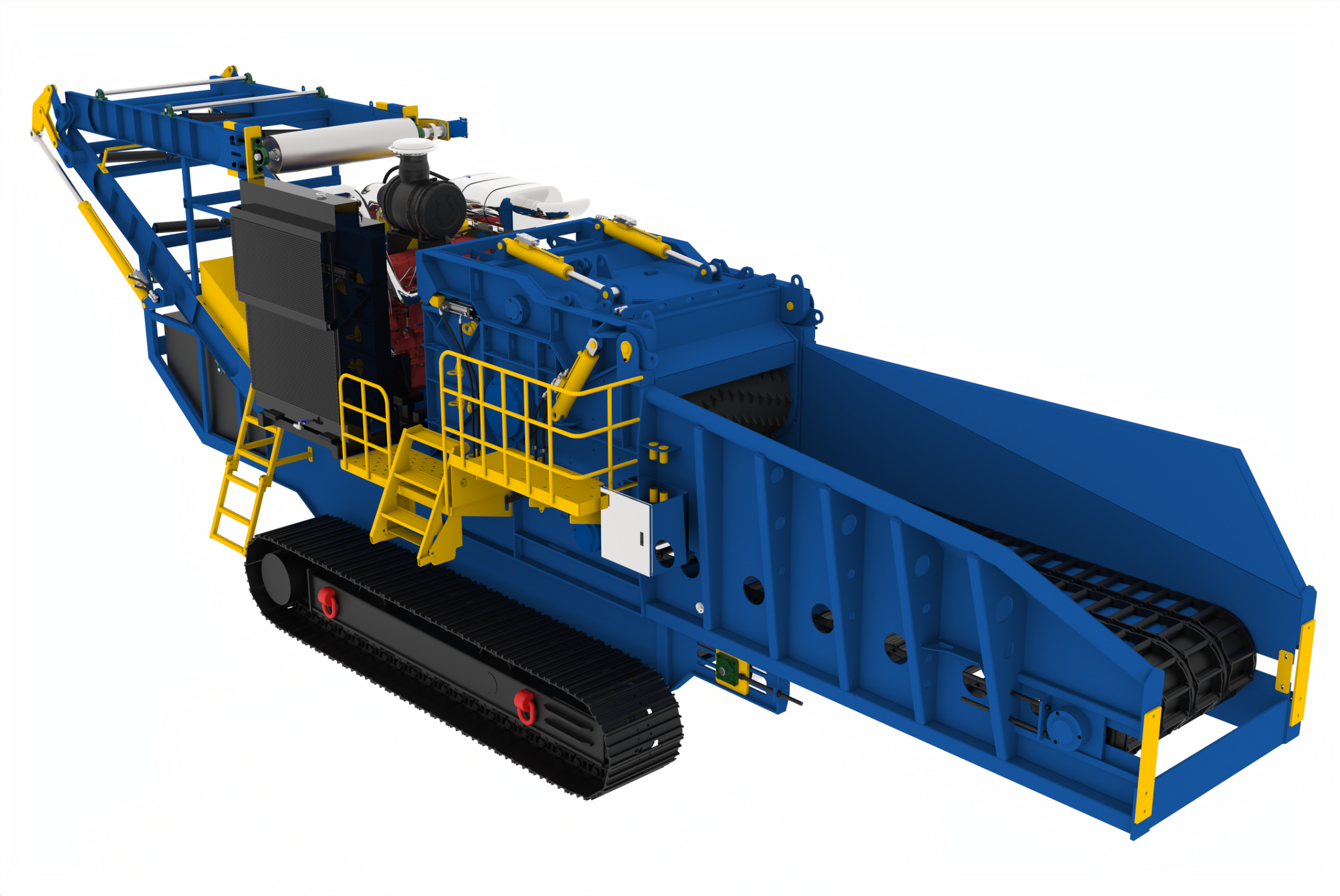

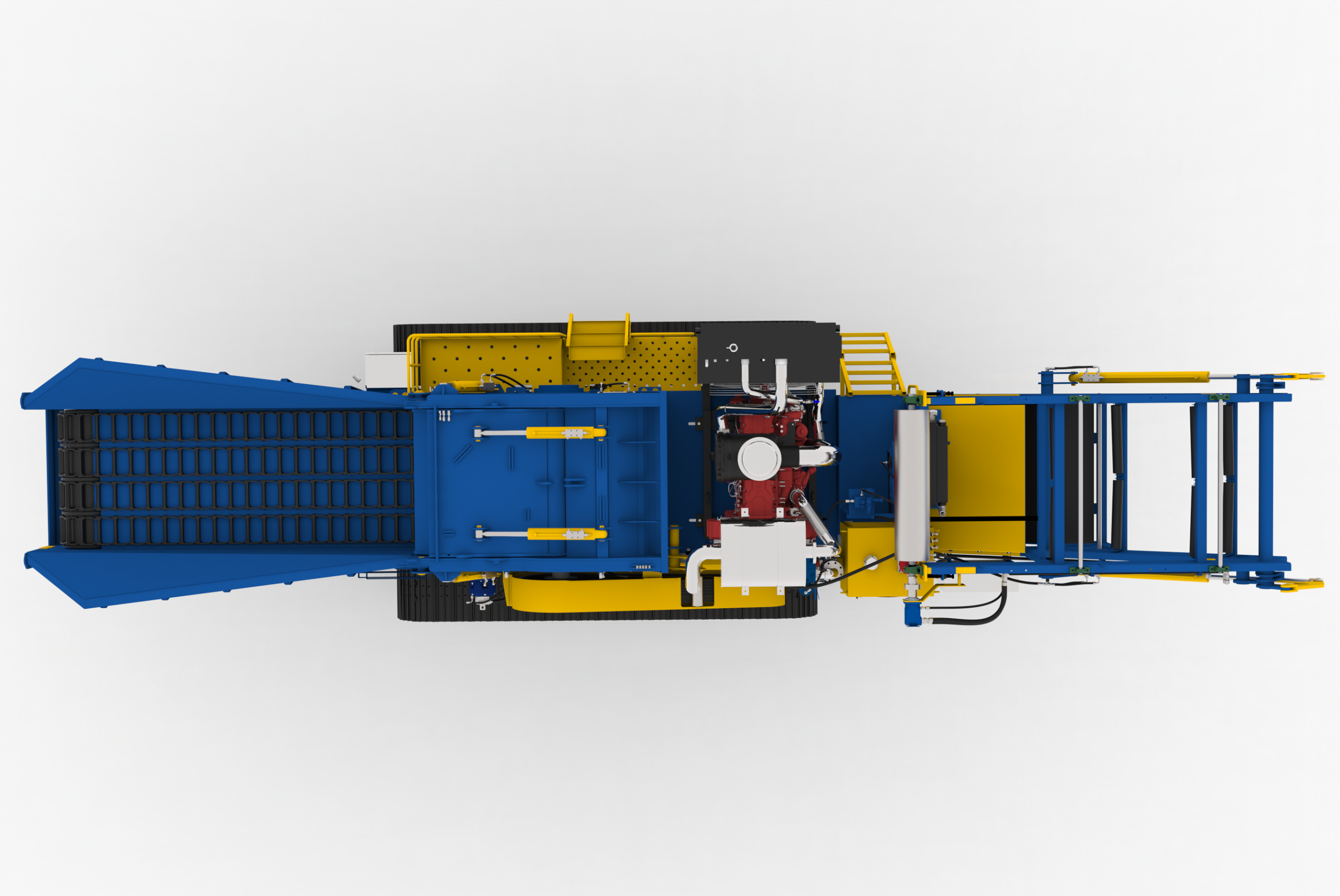

Key Features
Featuring 950 hp (708 kW) in a 92,000 lb (41,730.5 kg) class, and an infeed design designed specifically for feeding larger materials such as whole trees and large stumps, the new grinder is built to power through tough materials with less operator interaction.
The Series III hard-faced duplex drum offers durability and convenient maintenance, with the ability to remove and replace single hammers and balance the drum externally.
Low-side walls aid in feeding whole trees and other larger materials with less restriction, reducing the need for operator interaction with the material.
The SmartFeed system monitors engine rpm and adjusts grinding speed for optimal machine performance.
The optional Damage Defense system reduces the likelihood of certain metal contaminants from entering the hammermill by reacting to the initial contact with the contaminant and reversing the feed system to allow the removal of the contaminant.
The feed roller can climb up to 50” (127 cm), helping the machine crush logs or stumps that need to be rolled, and allowing the operator flexibility for different material inputs.
Change screens easily utilizing the optional screen hoist and the remote control or main machine controls. |
General Dimensions and Lengths
Maximum Length – Transport: 48.1 ft / 14.7 m
Maximum Length – Transport with Dolly: 48.6 ft / 14.8 m
Maximum Length (Operation): 56.5 ft / 17.2 m
Maximum Width Transport – with Dolly: 10 ft / 3 m
Weight: 92,000 lbs / 41,730.5 kg
Tongue Weight – Engine Option 1 with Dolly: 45,000 lbs / 20,411.7 kg
Axle Weight – Engine Option 1 with Dolly: 60,000 lbs / 27,215.5 kg
Dolly Weight: 9500 lbs / 4309.1 kg |
|
Engine Option One
Make and Model: Caterpillar C27 Tier 4F (Stage 4)
Number of Cylinders: 12
Gross Horsepower (Maximum): 950 hp / 708.4 kW
Torque (Max): 3212 ft-lb / 4354.9 Nm
Fuel Tank Capacity: 350 gal / 1324.9 L
Max Fuel Consumption: 47.5 gph / 179.8 lph
Fuel Type: Ultra-low sulfer diesel (<15 ppm)
Air Cleaner: Dry-type with primary and secondary elements and restriction indicator
Oil Filter: Full-flow, spin-on
Recommended Oil: CAT DEO-ULS, or API CJ-4, or ACEA E9 (15w-40)
Oil Volume with Filter: 71.9 qt / 68 L
Cooling Medium: Liquid
Coolant Capacity (Engine and Radiator): 45 gal / 170.3 L
Alternator: 24 Volt
Fan: (Qty 2) Variable-speed, reversible
Clutch Type: Hydraulic-operated wet clutch with PTO
Clutch Engagement: Push-button
Drive Belt Type: V-belt |
Engine Option Two
Make and Model: Caterpillar C27 Tier 2 (Stage II)
Number of Cylinders: 12
Gross Horsepower (Maximum): 950 hp / 708.4 kw
Torque (Max): 3212 ft-lb / 4354.9 Nm
Fuel Tank Capacity: 350 gal / 1324.9 L
Max Fuel Consumption: 47.7 gph / 180.6 lph
Fuel Type: Diesel
Air Cleaner: Dry-type with primary and secondary elements and restriction indicator
Oil Filter: Full-flow, spin-on
Recommended Oil: CAT DEO-ULS, or API CJ-4, or ACEA E9 (15w-40)
Oil Volume with Filter: 71.9 qt / 68 L
Cooling Medium: Liquid
Coolant Capacity (Engine and Radiator): 45 gal / 170.3 L
Air to Boil Temperature: 126 deg
Alternator: 24 Volt
Fan: (Qty 2) Hydraulically driven, reversible
Clutch Type: Hydraulic operated wet clutch with PTO
Clutch Engagement: Push-button
Drive Belt Type: V-belt
Sound Power: 120 dB(A) |
|
Infeed roller
Feed Table Width: 60 inches / 152.4 cm
Feed Table Length: 19 foot / 5.8 m
Loading Height: 6 foot / 1.8 m
Feed Conveyor Type: Welded slat chain
Drive Type: Radial piston motor
Infeed Roller Width: 56.3 inches / 143 cm
Infeed Roller Weight: 2460 lbs / 1115.8 kg
Maximum Feed Height: 50 inches / 127 cm |
Safety System
Thrown Object Deflector: Standard
Deflector Position: Variable |
|
Duplex Drum
Millbox Opening: 60 inches W x 38 inches H / 152.4 cm W x 96.5 cm H
Drum Diameter: 28 inches / 71.1 cm
Tip Diameter: 36.4 inches / 92.5 cm
Drum Cutting Width: 62.4 inches / 158.5 cm
Drum Skin Thickness: 1.5 inches / 3.8 cm
Drum Speed: 1200 rpm
Bearing Type: Double row, spherical roller
Bearing – Inner Race Diameter: 6 inches / 15.2 cm
Number of Hammers: 10
Number of Tips: 20
Center Retention Pin Dimensions: 2 inches diameter x 79.35 inches L / 5.1 cm diameter x 201.5 cm L |
Screens
Screen Weight: 470 lbs / 213.2 kg
Screen Dimensions: 1 inch thick / 2.54 cm thick
Screen Type: Abrasion-resistant steel
Number of Screens: 2
Screen Area: 3583 sq in / 23116.1 sq cm
Millbox Lid Liner Dimensions: Abrasion resistant steel
Liner Dimensions: 0.75 inch, 1 inch thick / 1.9 cm, 2.5 cm thick
Anvil Type: Fabricated steel with replaceable wear surfaces
Anvil Dimensions: 6.6 inches x 18.2 inches x 81 inches / 16.7 cm x 46.2 cm x 205.7 cm |
|
Discharge System – Single Belt Design
Length: 89.3 ft / 27.2 m
Width: 48 inches / 121.9 cm
Belt Design: 3 ply – 330# or straight warp single ply 330# both with V cleat
Splice: R2-stainless steel or super splice
Return Roller Quantity: 6
Idler Roller Diameter: 12 inches / 30.5 cm
Idler Roller Bearing: 1-15/16, 4-bolt flange
Standard Drive Roller Diameter: 12.8 inches / 32.5 cm
Magnetic Drive Roller Diameter: 12.8 inches / 32.5 cm
Drive Motor: Fixed displacement, geroler
Drive Motor Bearings: 1-15/16, 4-bolt flange
Belt Speed: 877 ft/min / 267.3 m/min
Load Height: 16.3 ft / 5 m |
Hydraulic System
Tank capacity: 100 gal / 378.5 L
Recommended Oil: Vermeer HyPower 68
Filtration Method: Dual in-tank return filters with suction strainer
Number of Coolers: 1 |
|
Implement Hydraulics
System Type: Open-loop, pressure- and flow-compensated
Pump Type: Variable displacement, axial piston
Pump Flow at Maximum RPM: 63.3 gpm
System Relief Pressure: 4200 psi |
Discharge Conveyor Hydraulics
System Type: Open-loop, pressure- and flow-compensated
Pump Type: Variable displacement, axial piston
Pump Flow at Maximum RPM: 32.3 gpm / 122.3 L/min
System Relief Pressure: 3000 psi
Motor Series: Char-Lyn 6000 Series, geroler |
