Wood Tub Grinder SG 3200

Back to overview

SG 3200

Max transport length:

46ft (14m)

Max transport width:

11.9ft (3.6m)

Max transport height:

165in (419.1cm)

Weight - Engine Option One:

106000lbs (48080.8kg)

Fuel Tank Capacity

600gal (2271.2L)

WhatApp Message

Wood Tub Grinder Information

Product Overview
When you need maximum power for your high-production grinding operation, the Equipment is an ideal choice. The Wood Tub Grinder features a large-diameter opening of 11 ft (3.4 m) inside the tub. The patented Series III duplex drum offers proven cutting performance and reversible hammers and tips that maximize the wear life of single-sided designs and make daily maintenance efficient.

Wood Tub Grinder packs innovation and power for the large land-clearing projects and organic/wood waste processing applications.

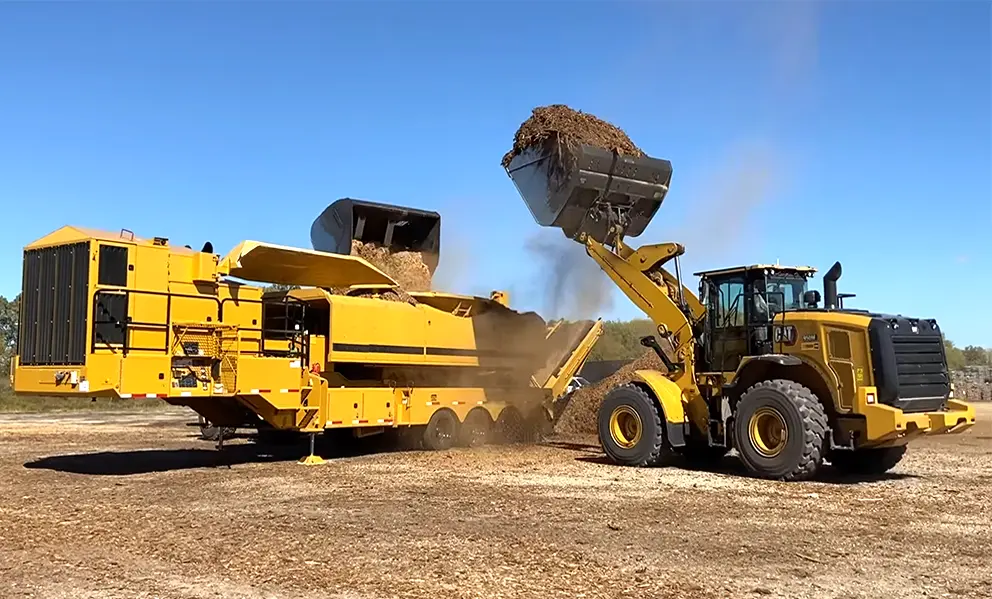

See The Wood Tub Grinder Chips In Action

Wood Tub Grinder - Product Introduction

The Wood Tub Grinder is a robust industrial machine designed to process large volumes of wood waste, including logs, stumps, branches, and construction wood debris, into uniform wood chips or sawdust. Featuring a unique tub-style feeding system and high-torque power train, this versatile equipment is essential for forestry operations, biomass energy production, wood recycling facilities, and land clearing projects. As a leading supplier of Wood Tub Grinder for Sale, we offer a range of commercial and industrial models tailored to meet diverse processing requirements.

Equipment Specifications

GENERAL DIMENSIONS – NON-LOADER Max transport length: 43.6′ (13.3 m) Max transport width: 11.92′ (3.6 m) Max transport height: 162″ (411.48 cm) Weight: 78,000 lb (35,380.2 kg)	DISCHARGE SYSTEM – SINGLE BELT DESIGN Belt length: 24′ (7.3 m) Belt width: 48″ (121.9 cm) Belt design: 330# with V-cleat
GENERAL DIMENSIONS – LOADER Max transport length: 43.6′ (13.3 m) Max loader reach: 29.5′ (9 m) Max transport width: 11.9′ (3.6 m) Max transport height: 162″ (411.5 cm) Weight: 90,000 lb (40,823.3 kg)	HYDRAULIC SYSTEM Tank capacity: 100 gal (378.5 L) Implement pump type: Axial piston, variable displacement CONTROLS Stationary: LCD multifunction Remote: Multifunction with built-in LCD display; max 300′ (91.4 m) operating range
ENGINE OPTION ONE Make/model: C27 Tier 4 Final Gross horsepower: 950 hp (708 kW) Fuel tank capacity: 500 gal (1892.7 L) ENGINE OPTION TWO (FOR LESSER REGULATED COUNTRIES) Model: Caterpillar C27 Tier 2 Gross horsepower: 950 hp (708 kW) Fuel tank capacity: 500 gal (1892.7 L)	OPTIONAL LOADER Loader reach: 29.5′ (9 m) Pedestal/Cab rotation: 370° Loader lift capacity at full reach: 4000 lb (1814.4 kg) Loader lift capacity at 10′ (3.1 m): 12,000 lb (5443.1 kg) Grapple type: Multi-tine, continuous 360° rotation Grapple weight: 1450 lb (657.7 kg)
FEED SYSTEM Inside diameter of tub: 10′ (3 m) Inside flare diameter (at tub opening): 13′ (3.9 m) Depth of tub: 4.7′ (1.4 m)	OPTIONAL AIR COMPRESSOR Brand: Mi-T-M Engine: 11.7 hp (8.7 kW) Honda Max pressure: 175 psi (12.1 bar) Max air flow: 29 cfm (0.8 m3/min) Tank capacity: 30 gal (113.6 L)

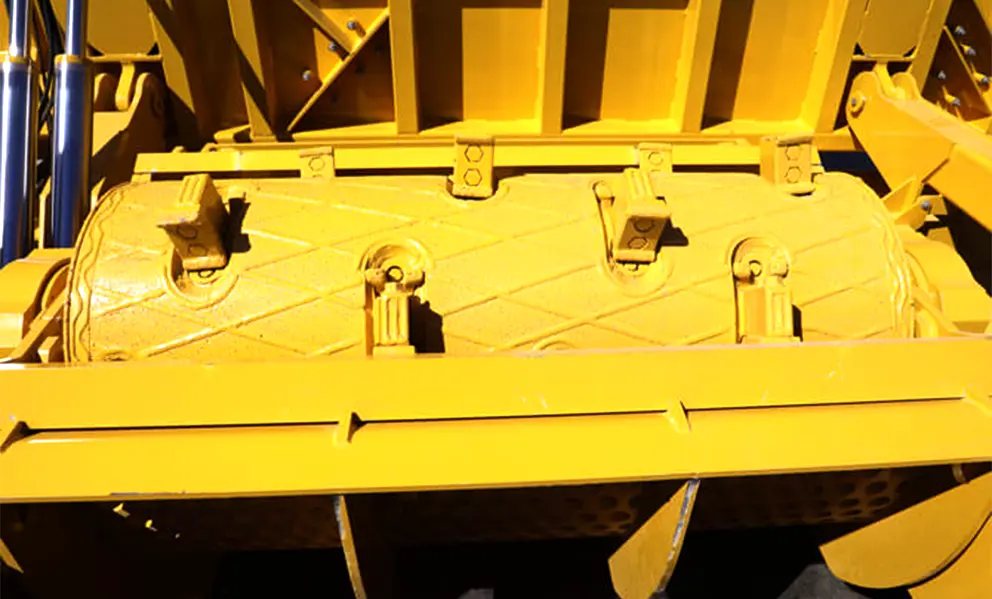

DUPLEX DRUM Millbox opening: 32″ x 72″ (81.3 x 182.9 cm) Drum diameter: 22.5″ (57.2 cm) Number of hammers: 10 Number of tips: 20 SCREENS Screen dimensions: 72.4″ x 28.1″ (183.9 cm x 71.4 cm) with .75″ and 1″ (1.9 cm and 2.5 cm) thick wear surface Screen area: 4,069 sq in (26,251 sq cm)	OPTIONS Super single wheel assemblies Auto reversing fan Air ride suspension Confidence Plus® asset protection program Damage Defense system Overband magnet Work lights Loader
