Large Wood Chipper

EG 4320

Transport Length:

7966mm

Transport Width:

2350mm

Transport Height:

2265mm

Main motor

160KW

Weight

12500kg

WhatApp Message

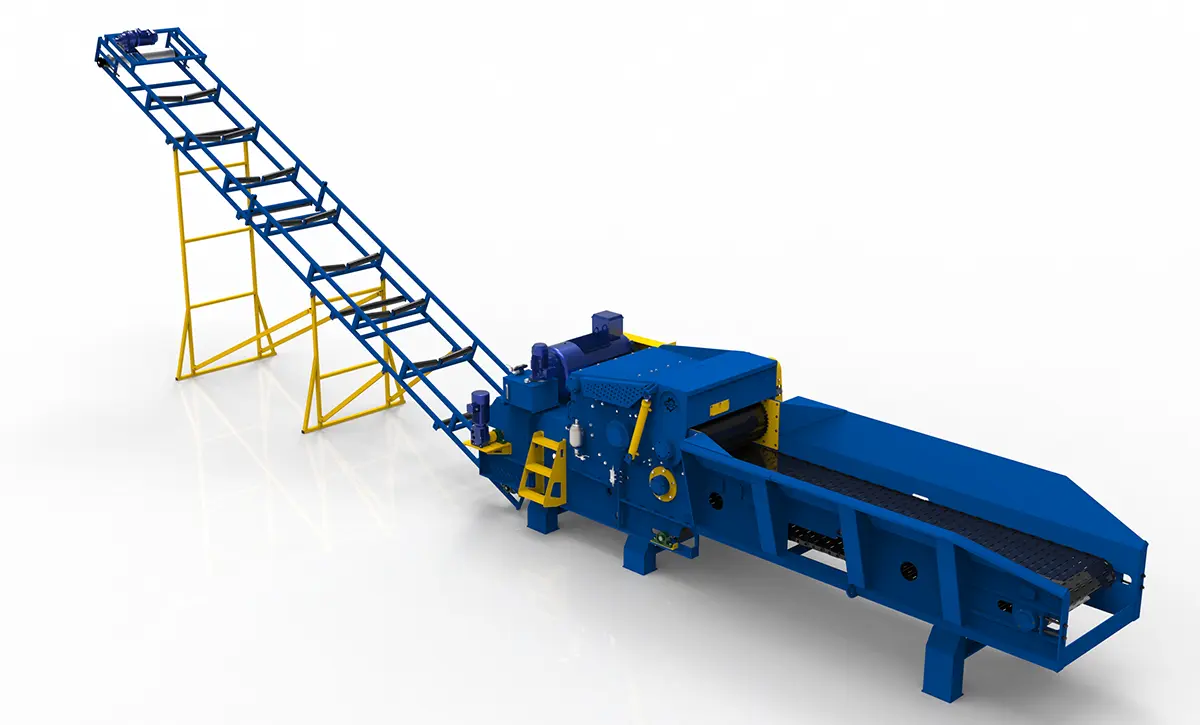

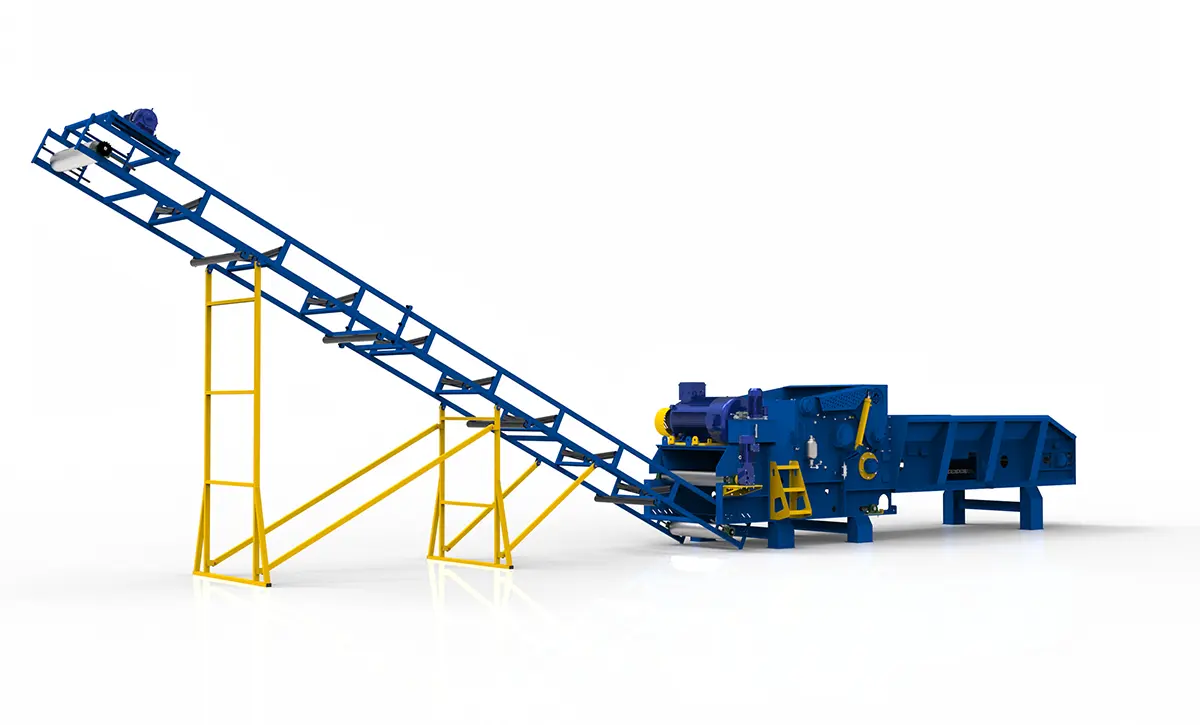

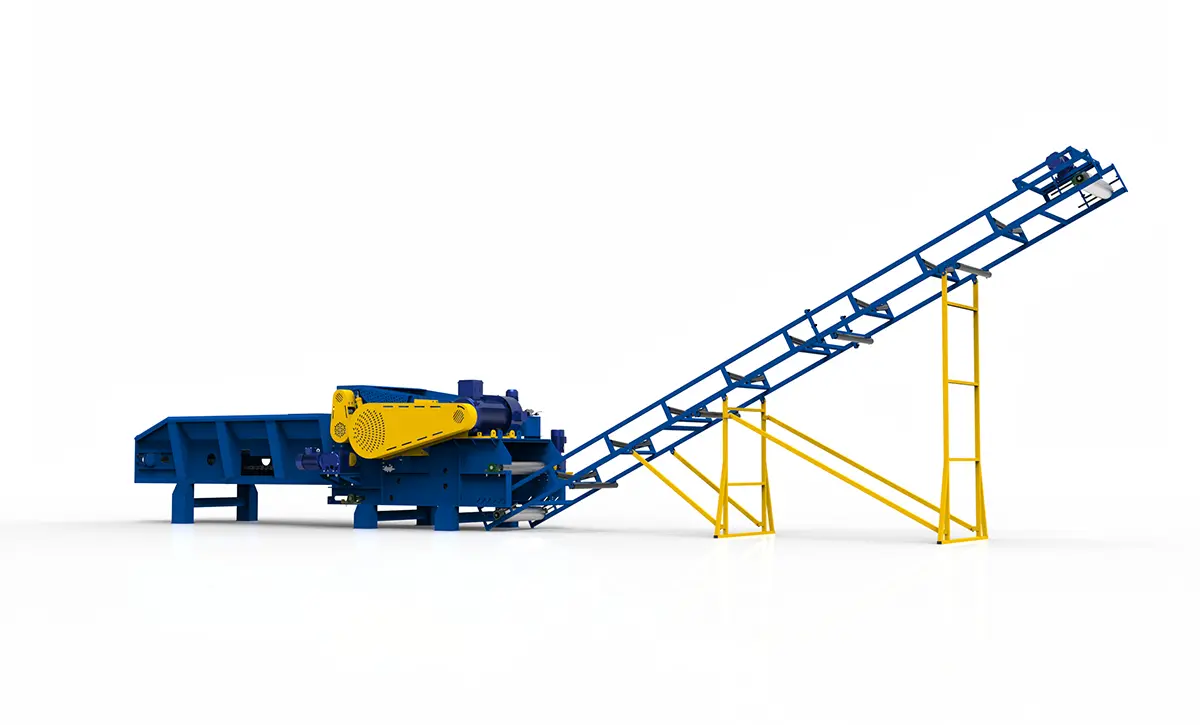

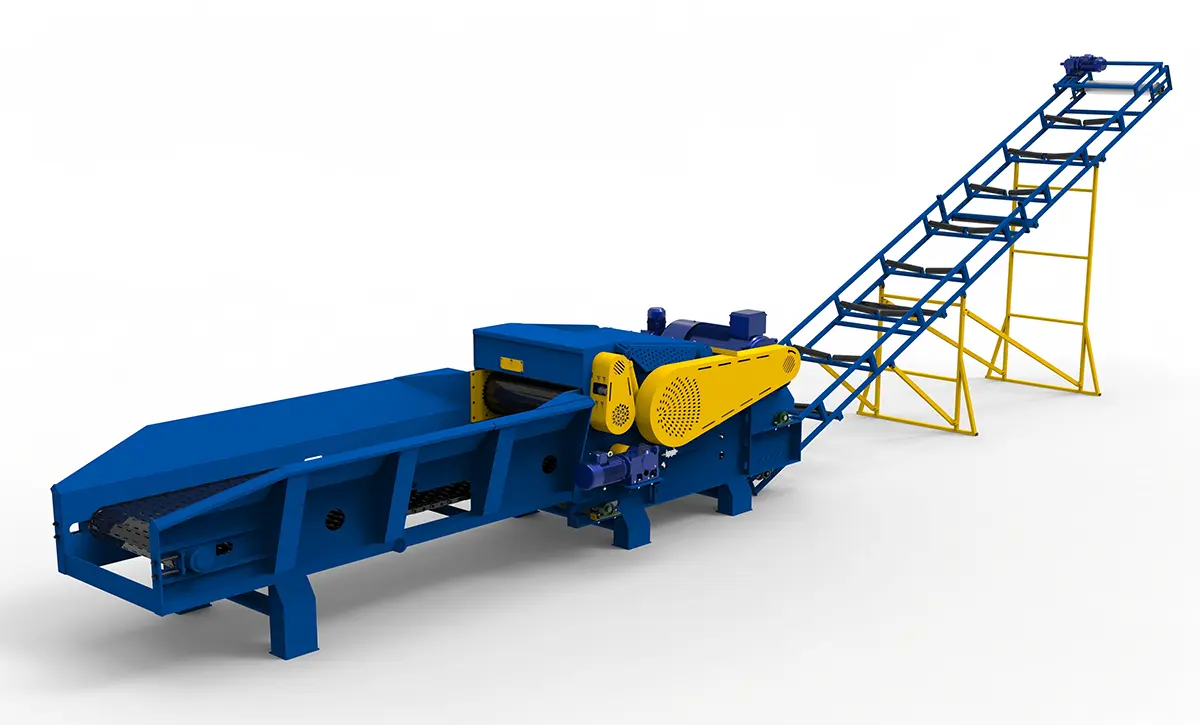

EG 4320 Industrial Large Wood Chipper

Precision Grinding
Our electric grinders offer “Perfect In One Pass” simplicity for colored landscape mulch, animal bedding, and other products with demanding specifications.

Unmatched Efficiency
We designed a dedicated line of electric-powered grinding systems to optimize the enhanced efficiency, uptime, and clean operation of electric power.

Industrial Large Wood Chipper: Power Through Heavy-Duty Wood Processing

Our heavy-duty large wood chipper is engineered for high-volume wood shredding in forestry, landscaping, construction, and biomass energy industries. With robust cutting systems and high-torque engines, it efficiently processes logs, thick branches, and timber up to 30 cm inches in diameter, delivering consistent, uniform wood chips for mulch, fuel, or recycling.

CHIPPING DRUM FOR ELECTRIC HORIZONTAL GRINDER Knife cutterbodies can produce a standard 3/4-inch chip or a fine sawdust-type micro chip for pellet production. Switching to a chipper drum allows The SHDCN to produce a variety of chip sizes from 3/8” to large 2” chips.

ELECTRIC MOTORS The SHDCN electric uses heavy-duty, industry proven motors equipped with soft-starts to reduce the incidence of line-voltage drop. No special foundation is required; just roll The Grinder in, set up, and start grinding.

RADIO REMOTE Control all functions with a radio remote from the comfort of the loader feeding the machine.

CENTRALIZED LUBRICATION This model is equipped with a centralized lubrication system, making your maintenance work more stable, reliable, and simple.

ELECTRICAL CONTROL CABINET Maintenance-friendly; front-mounted operation allows for quick replacement of faulty modules with minimal downtime. Optional intelligent monitoring: The CMC system remotely monitors temperature, humidity, current, and voltage, providing early warnings and reducing the risk of failure.

SCREEN OPTIONS Choose from dozens of specialty tooth designs and screen sizes to create the perfect end-product. Experiment on your own, or use one of the many SHDCN -recommended setups to get up and running with the ideal product right away.

TRANSPORT DIMENSIONS Transport Length: 7966mm Transport Width: 2350mm Transport Height: 2265mm Engine: 160KW Motor Weight: 12500KG Rotor Dimensions: Cutting width 1380mm, rotor diameter 800mm, 12 flying cutters/6 flying cutters Feed Width: 1250mm Conveyor Dimensions: 1m×10m, Discharge Height: 4.5m	CHIP DRUM OPTION Millbox opening: 51.2″ x 24″ (130 cm x 66 cm) Drum diameter: 31.5″ (80 cm) Number of knives: 12 Depth of cut: Ranging from .125″ to 1″ (.3 cm to 2.5 cm)
ELECTRIC MOTORS feed motor horsepower: 7.5kw feed motor horsepower: 7.5kw Discharge motor horsepower: 3kw Conveyor motorhorsepower: 4kw Voltage: 380 V/460 V Frequency: 50 Hz/60 Hz Phase: Three phases Enclosure: TEFC (totally enclosed, fan-cooled)	CONVEYOR Belt width: 39.4″ (100 cm) Belt design: 3-ply – 330# with V-cleat Belt length: 78.7′ (20 m)
CONTROL PANEL OPTIONS VFD (variable frequency drive) panel: 380 V or 460 V, NEMA Type 5 enclosure Soft-start starter panel: 380 V or 460 V, NEMA Type 4 enclosure	INFEED CONVEYOR Feed table width: 51.2″ (130 cm) Feed table length: 15′ (4.6 m) Loading height: 6.5′ (2 m)
CHYDRAULIC PUMP STATION Tank capacity: 15.9 gal (60L)	INFEED ROLLER Max feed height: 24″ (61 cm) Infeed roller diameter: 21.6″ (55 cm)
CONTROLS Stationary: Side-mounted LCD control station Remote: Multifunction with built-in LCD display, max 300′ (91.4 m) operating range	DUPLEX DRUM OPTION Millbox opening: 51.2″ x 24″ (130 cm x 61 cm) Drum diameter: 31.5″ (80 cm) Number of hammers: 19

EG 5320

Transport Length:

7966mm

Transport Width:

2875mm

Transport Height:

2397mm

Engine:

315KW

Weight:

17200KG

message SEE PRODUCT

EG 4360

Transport Length:

9600mm

Transport Width:

2200mm

Transport Height:

2500mm

Main motor

250KW

Weight:

16800KG

message SEE PRODUCT

EG 2113

Transport Length:

11500mm

Transport Width:

2650mm

Transport Height:

2620mm

Main motor

450KW

Weight

26500KG

message SEE PRODUCT

EG 4320

Transport Length:

7966mm

Transport Width:

2350mm

Transport Height:

2265mm

Main motor

160KW

Weight

12500kg

message SEE PRODUCT

EG 2110

Transport Length:

9200mm

Transport Width:

2200mm

Transport Height:

2530mm

Main motor

200KW

Weight:

18100KG

message SEE PRODUCT

EG 2360

Transport Length:

7966mm

Transport Width:

2350mm

Transport Height:

2265mm

Engine:

160KW motor

Weight

12500kg

message SEE PRODUCT

Let'S Get Started Right Away.

Become a Dealer

Apply now

Request more information

EG 4320 Industrial Large Wood Chipper

See The Large Wood Chipper In Action
