Whole Tree Chipper

EG 2360

Transport Length:

7966mm

Transport Width:

2350mm

Transport Height:

2265mm

Engine:

160KW motor

Weight

12500kg

WhatApp Message

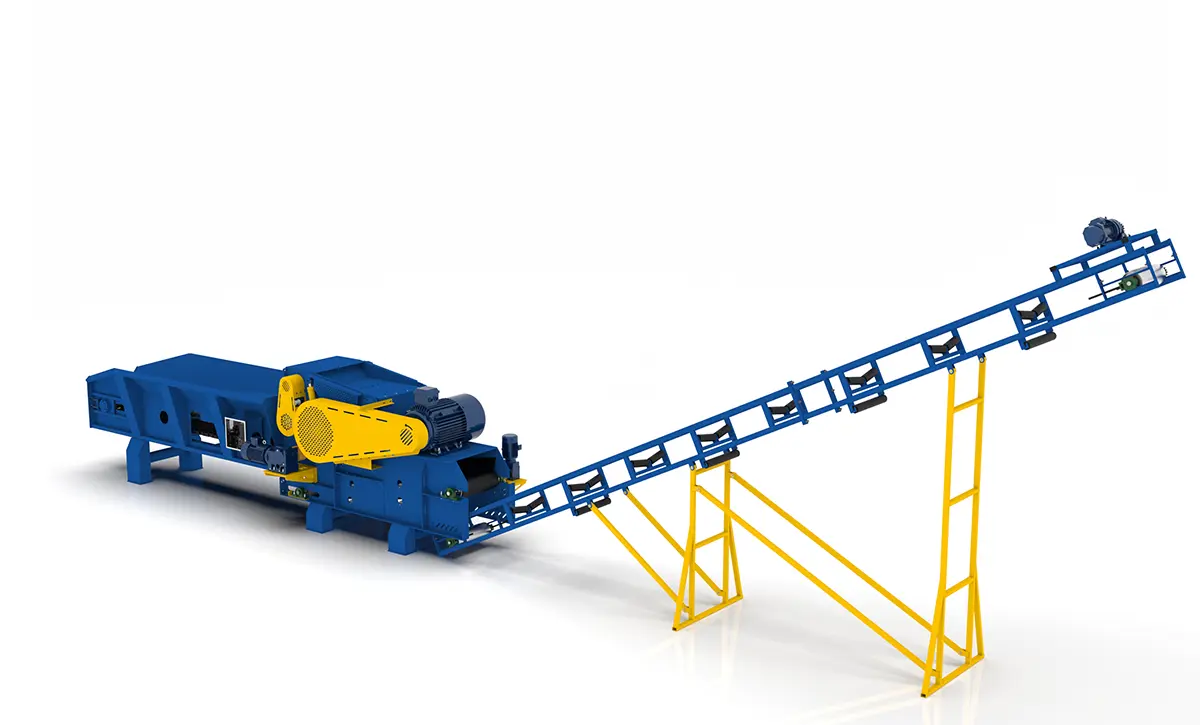

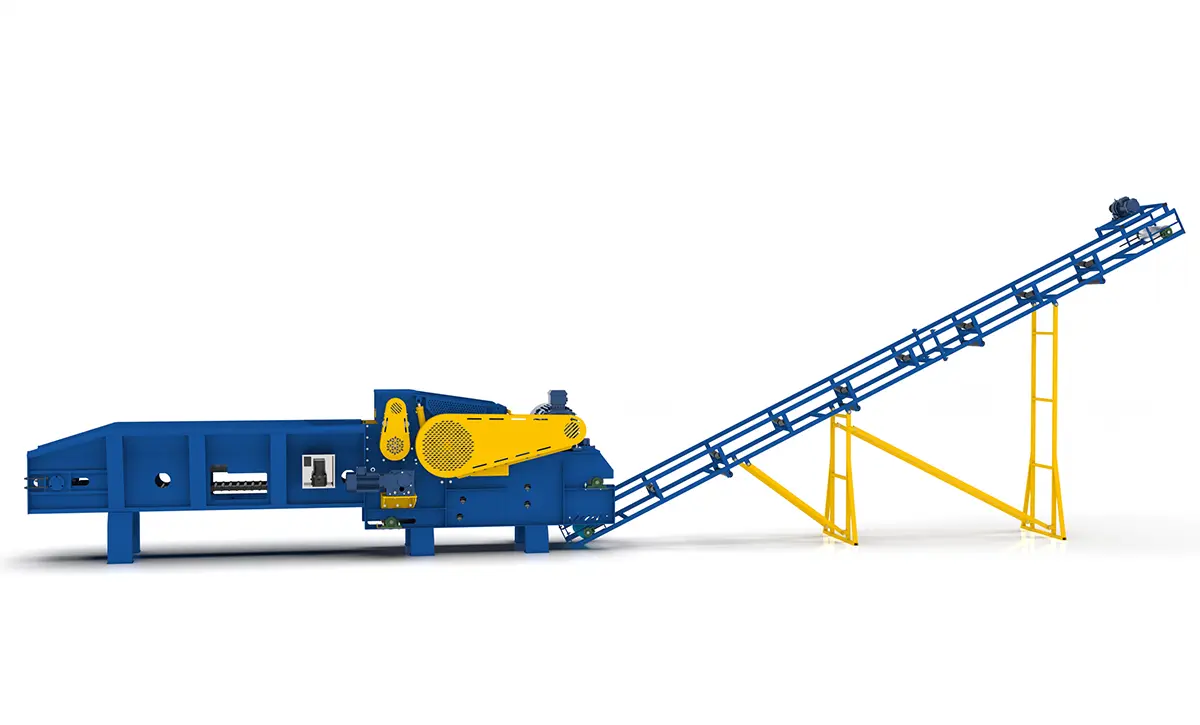

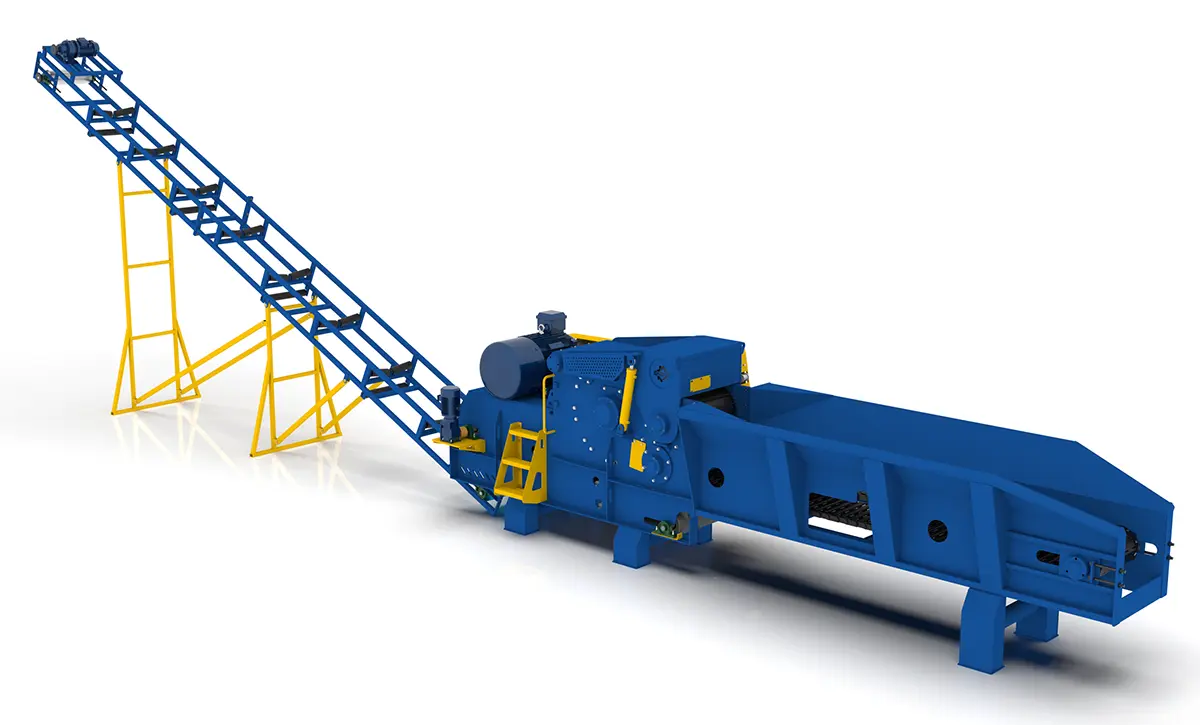

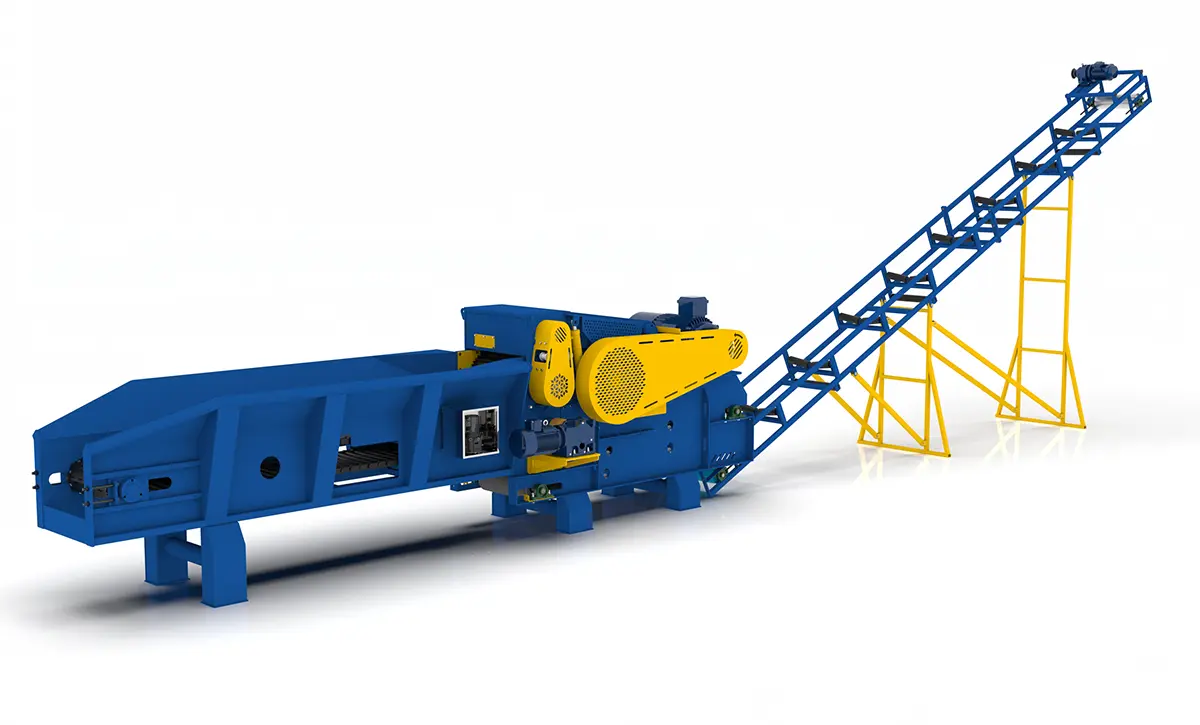

EG 2360 Industrial Large Wood Chipper

Precision Grinding
Our electric grinders offer “Perfect In One Pass” simplicity for colored landscape mulch, animal bedding, and other products with demanding specifications.

Unmatched Efficiency
We designed a dedicated line of electric-powered grinding systems to optimize the enhanced efficiency, uptime, and clean operation of electric power.

Whole Tree Chipper: Industrial-Grade Whole Tree Shredding Solution

Our heavy-duty large wood chipper is engineered for high-volume wood shredding in forestry, landscaping, construction, and biomass energy industries. With robust cutting systems and high-torque engines, it efficiently processes logs, thick branches, and timber up to 30 cm inches in diameter, delivering consistent, uniform wood chips for mulch, fuel, or recycling.

CHIPPING DRUM FOR ELECTRIC HORIZONTAL GRINDER Knife cutterbodies can produce a standard 3/4-inch chip or a fine sawdust-type micro chip for pellet production. Switching to a chipper drum allows The SHDCN to produce a variety of chip sizes from 3/8” to large 2” chips.

ELECTRIC MOTORS The SHDCN electric uses heavy-duty, industry proven motors equipped with soft-starts to reduce the incidence of line-voltage drop. No special foundation is required; just roll The Grinder in, set up, and start grinding.

RADIO REMOTE Control all functions with a radio remote from the comfort of the loader feeding the machine.

CENTRALIZED LUBRICATION This model is equipped with a centralized lubrication system, making your maintenance work more stable, reliable, and simple.

ELECTRICAL CONTROL CABINET Maintenance-friendly; front-mounted operation allows for quick replacement of faulty modules with minimal downtime. Optional intelligent monitoring: The CMC system remotely monitors temperature, humidity, current, and voltage, providing early warnings and reducing the risk of failure.

SCREEN OPTIONS Choose from dozens of specialty tooth designs and screen sizes to create the perfect end-product. Experiment on your own, or use one of the many SHDCN -recommended setups to get up and running with the ideal product right away.

TRANSPORT DIMENSIONS Transport Length: 7966mm Transport Width: 1810mm Transport Height: 2300mm Engine: 110KW Motor Weight: 9600KG Rotor Dimensions: Cutting width 720mm, rotor diameter 800mm, 4 flying cutters/6 flying cutters Feed Width: 720mm Conveyor Dimensions: 1m×10m, Discharge Height: 4.5m	CHIP DRUM OPTION Millbox opening: 30.2″ x 22.8″ (76.8 cm x 58 cm) Drum diameter: 31.5″ (80 cm) Number of knives: 4 Depth of cut: Ranging from .125″ to 1″ (.3 cm to 2.5 cm)
ELECTRIC MOTORS feed motor horsepower: 7.5kw feed motor horsepower: 5.5kw Discharge motor horsepower: 3kw Conveyor motorhorsepower: 4kw Voltage: 380 V/460 V Frequency: 50 Hz/60 Hz Phase: Three phases Enclosure: TEFC (totally enclosed, fan-cooled)	CONVEYOR Belt width: 23.6″ (60cm) Belt design: 3-ply – 330# with V-cleat Belt length: 78.7′ (20 m)
HYDRAULIC PUMP STATION Tank capacity: 15.9 gal (60L)	INFEED CONVEYOR Feed table width: 30″ (76 cm) Feed table length: 15′ (4.6 m) Loading height: 6.5′ (2 m)
CONTROL PANEL OPTIONS VFD (variable frequency drive) panel: 380 V or 460 V, NEMA Type 5 enclosure Soft-start starter panel: 380 V or 460 V, NEMA Type 4 enclosure	INFEED ROLLER Max feed height: 24″ (61 cm) Infeed roller diameter: 21.6″ (55 cm)
