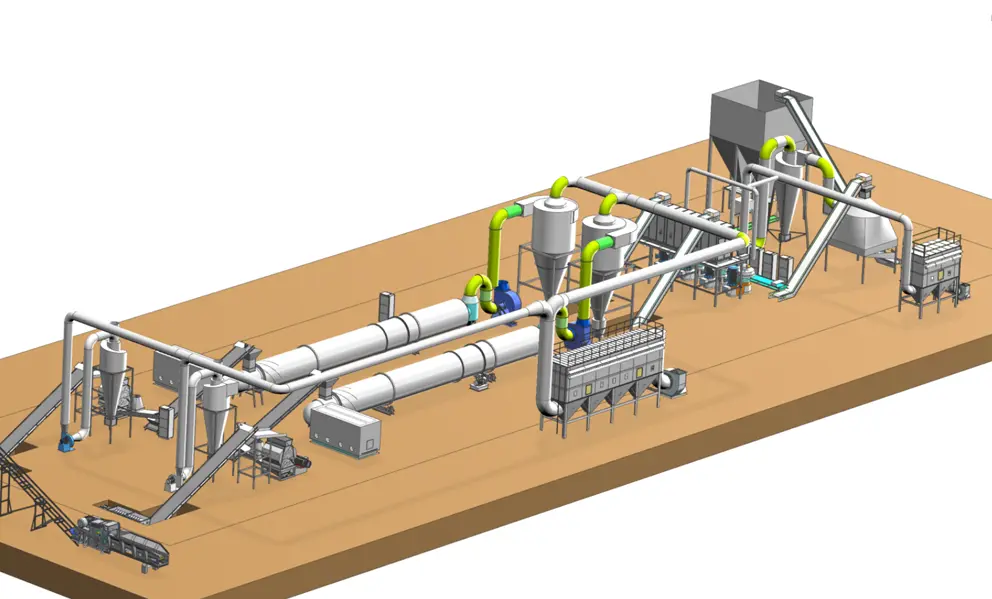

Straw Pasture Biomass Pellet Line-0

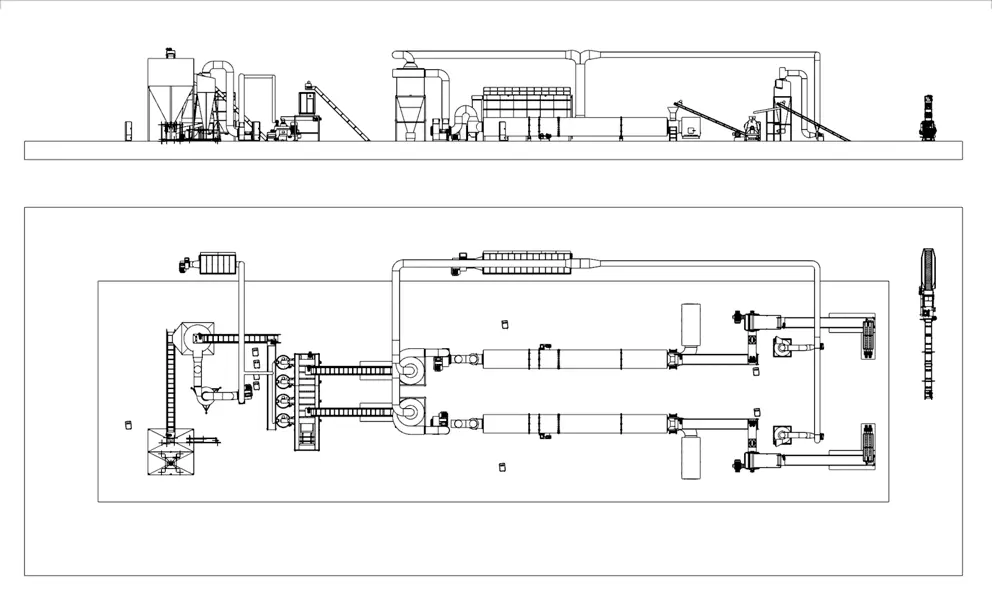

Straw Pasture Biomass Pellet Line-2
Straw,Rice Straw, Pasture Biomass Pellet Line (1)
Straw,Rice Straw, Pasture Biomass Pellet Line (3)
Straw/Rice Straw/Pasture Biomass Pellet Line
Production Capacity:
3000kg/h - 8000kg/h
Raw Materials:
Straw, Rice Straw, Forage
Labor:
3-10 People
3 Tons/Hour:
Transformer ≥ 500 Kva
8 Tons/Hour:
Transformer ≥ 1000 Kva

Straw, Rice Straw, and Pasture Biomass Pellet Production Line:
Sustainable Biofuel and Feed Solution

The Biomass Pellet Production Line for straw, rice straw, and pasture materials is a comprehensive and integrated system designed to convert abundant agricultural residues into high-density, uniform pellets. These pellets serve as renewable solid biofuels for heating and power generation, as well as nutritious animal feed components, supporting circular agriculture and clean energy transition.

Straw/Rice Straw/Pasture Biomass Pellet Line

1. Rotary Crushing: The straw is crushed to below 8mm using a rotary crusher.
2. Drying: The crushed material is dried using a drum dryer.
3. Pelletizing: The dried material enters the hopper and is then fed into the pelletizing machine via a spiral auger.
4. Cooling: The high-temperature pellets are conveyed to a cooler for cooling.
5. Packaging: The cooled pellets are packaged in a packaging machine.

Equipment Features
Straw Veneer
Straw Veneer Large-diameter feeders are available in three sizes: 2000mm, 2500mm, and 3000mm. The large diameter facilitates the feeding of piled or bundled materials, such as stacked straw, hay, or bundled straw and hay.
Long Warehouse-1
High-Efficiency Crusher It can crush wood chips, shavings, rotary-cut wheat straw, corn stalks and other fibrous materials, and can also crush granular feed ingredients such as corn.
Rotary Drum Dryer
Rotary Drum Dryer Rotary drum dryers are widely used drying equipment capable of drying various materials such as sawdust, straw, and rice. The equipment is simple to operate and runs stably.
Centrifugal High-Efficiency Pellet Mill
Centrifugal High-Efficiency Pellet Mill Our high-efficiency centrifugal pellet mill is a patented product. We offer the 560 model with a power of 132KW and an hourly output of 1.5-2 tons, and the 850 model with a power of 250KW and an hourly output of 3-4 tons. You can choose the model that best suits your needs.
Belt Conveyor
Belt Conveyor Belt conveyors have strong conveying capacity, long conveying distance, simple structure, easy maintenance, and can be easily programmed and automated.
Long Warehouse-1
Long Warehouse The material used is thick galvanized steel sheet, which has high density, is not easily deformed or corroded, and has a long service life. It adopts a modular structure for easy transportation and on-site assembly by the customer; a hydraulic material leveling device is installed at the bottom of the silo to prevent material bridging; a screw conveyor with variable frequency feeding is installed at the bottom to ensure stable feeding of the pellet mill.
Cooler
Cooler It adopts a unique vibration mechanism for material discharge, which ensures stable operation and smooth material discharge. Utilizing the counter-flow cooling principle, the particles are cooled fully and evenly.
Packaging Machine
Packaging Machine Customers can choose the type of packaging scale according to their own requirements; of course, in a complete production line, large and small packaging scales can be used in combination.
Equipment End Use
StrawRice StrawPasture Biomass Pellet Line (1)
StrawRice StrawPasture Biomass Pellet Line (2)
StrawRice StrawPasture Biomass Pellet Line (4)
StrawRice StrawPasture Biomass Pellet Line (5)
StrawRice StrawPasture Biomass Pellet Line (6)
StrawRice StrawPasture Biomass Pellet Line (7)
StrawRice StrawPasture Biomass Pellet Line (11)
StrawRice StrawPasture Biomass Pellet Line (12)
