Home Equipment Biomass Fuel Pellet
Back to overview
Wooden Pallet Building Mold Particle Production Line (1)
Wooden Pallet Building Mold Particle Production Line (2)
Wooden Pallet Building Mold Particle Production Line
Wooden Pallet Building Mold Particle Production Line (4)
Wooden Pallet Building Mold Particle Production Line
Production Capacity
8000kg/h-12000kg/h
Raw Materials
Waste Wooden Pallets / Wood Veneer
Labor
3-5 People
8 Tons/Hour
Transformer ≥ 800 kVA
12 Tons/Hour
Transformer ≥ 1500 kVA

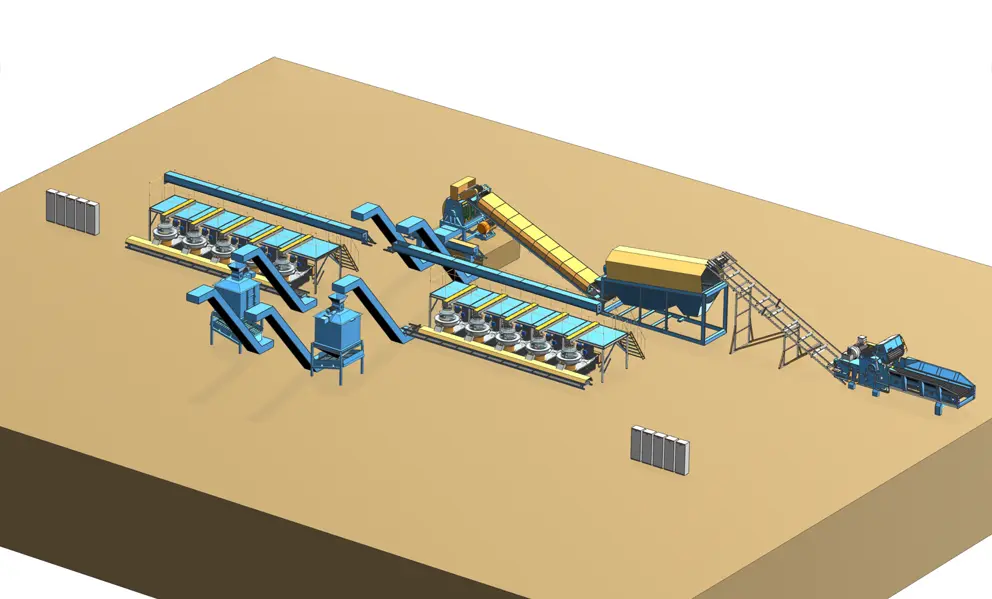

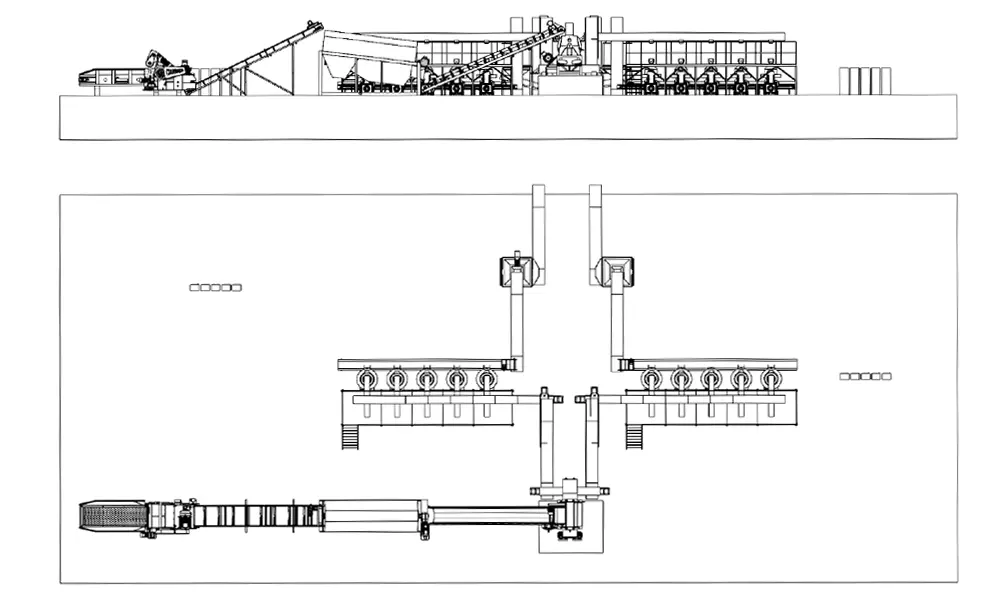

Wooden Pallet & Building Mold Particle Production Line:
Intelligent Recycling System for Wood Waste Valorization

This integrated production line is designed to transform discarded wooden pallets, construction formwork, and used building molds into high-quality wood particles suitable for various industrial applications. By repurposing wood waste into consistent, clean raw material, the system supports circular economy principles while delivering significant economic and environmental value.

Wooden Pallet Building Mold Particle Production Line

1.Crushing & Pulverizing: Use an integrated crushing and pulverizing machine to crush and pulverize wood containing metal.
2.Pelletizing: After the pulverized material enters the silo, it is fed into the pellet mill via a screw conveyor for pelletizing.
3.Cooling: High-temperature pellets are conveyed to the cooler via a belt conveyor for cooling.

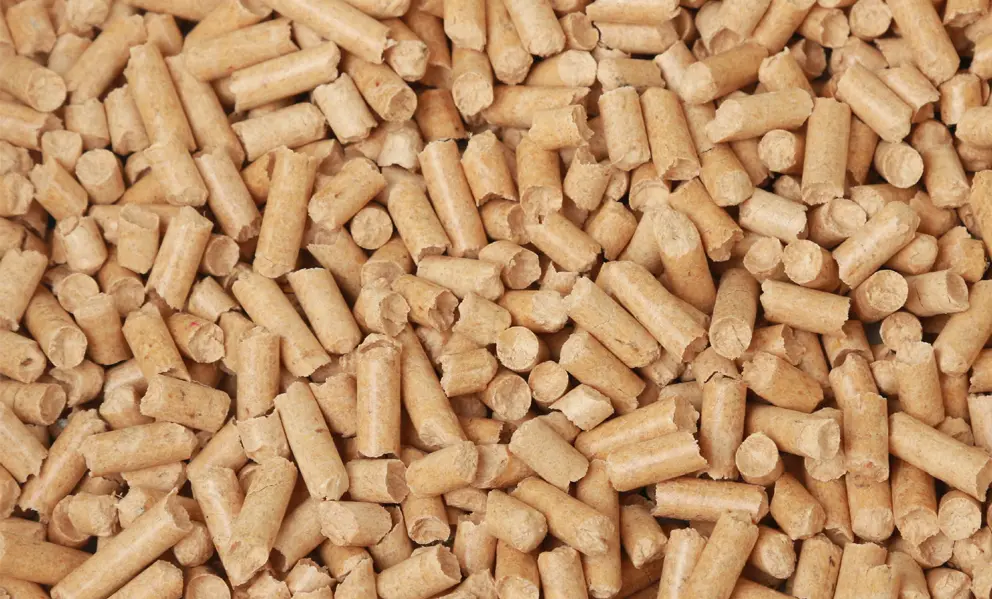

4.Packaging: Cooled pellets enter the packaging machine for packaging.

Equipment Features

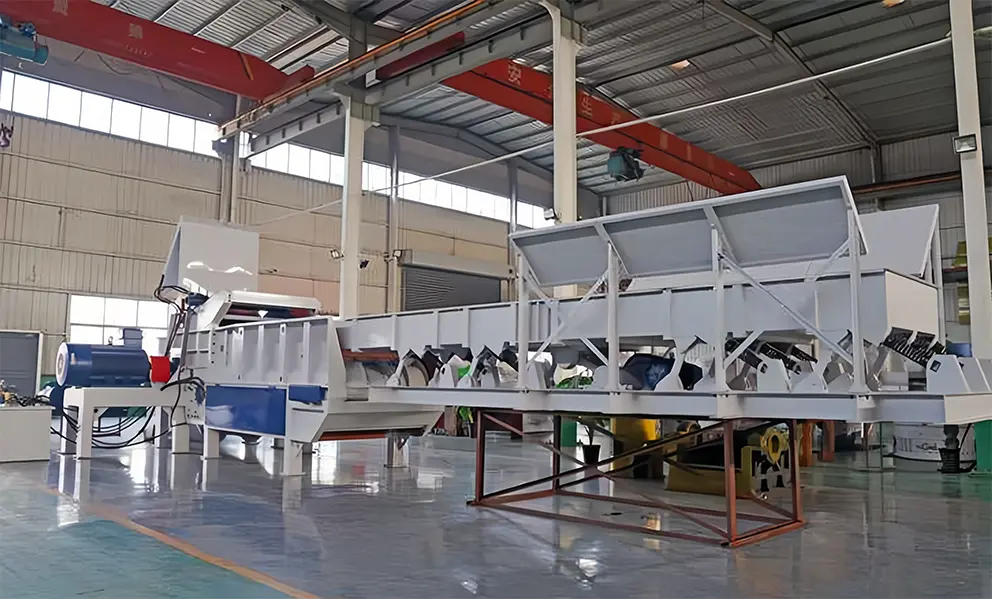

Granule Crushing Machine
Combined Crusher & Pulverizer Suitable for wood-based materials containing metal, including construction formwork, wooden pallets, demolition wood waste, waste wooden furniture, leftover scraps from furniture and flooring factories (with metal), as well as branches and logs < 10 cm in diameter.
Centrifugal High-Efficiency Pellet Mill
Centrifugal High-Efficiency Pellet Mill Our high-efficiency centrifugal pellet mill is a patented product. We offer the 560 model with a power of 132KW and an hourly output of 1.5-2 tons, and the 850 model with a power of 250KW and an hourly output of 3-4 tons. You can choose the model that best suits your needs.
Belt Conveyor
Belt Conveyor Belt conveyors have strong conveying capacity, long conveying distance, simple structure, easy maintenance, and can be easily programmed and automated.
Long Warehouse-1
Long Warehouse The material used is thick galvanized steel sheet, which has high density, is not easily deformed or corroded, and has a long service life. It adopts a modular structure for easy transportation and on-site assembly by the customer; a hydraulic material leveling device is installed at the bottom of the silo to prevent material bridging; a screw conveyor with variable frequency feeding is installed at the bottom to ensure stable feeding of the pellet mill.
Cooler
Cooler It adopts a unique vibration mechanism for material discharge, which ensures stable operation and smooth material discharge. Utilizing the counter-flow cooling principle, the particles are cooled fully and evenly.
Packaging Machine
Packaging Machine Customers can choose the type of packaging scale according to their own requirements; of course, in a complete production line, large and small packaging scales can be used in combination.
Equipment End Use
Wooden Pallet Building Mold Particle (11)
Wooden Pallet Building Mold Particle (5)
Wooden Pallet Building Mold Particle (8)
Wooden Pallet Building Mold Particle (6)
Wooden Pallet Building Mold Particle (9)
Wooden Pallet Building Mold Particle (2)
Wooden Pallet Building Mold Particle (1)
Wooden Pallet Building Mold Particle (12)
